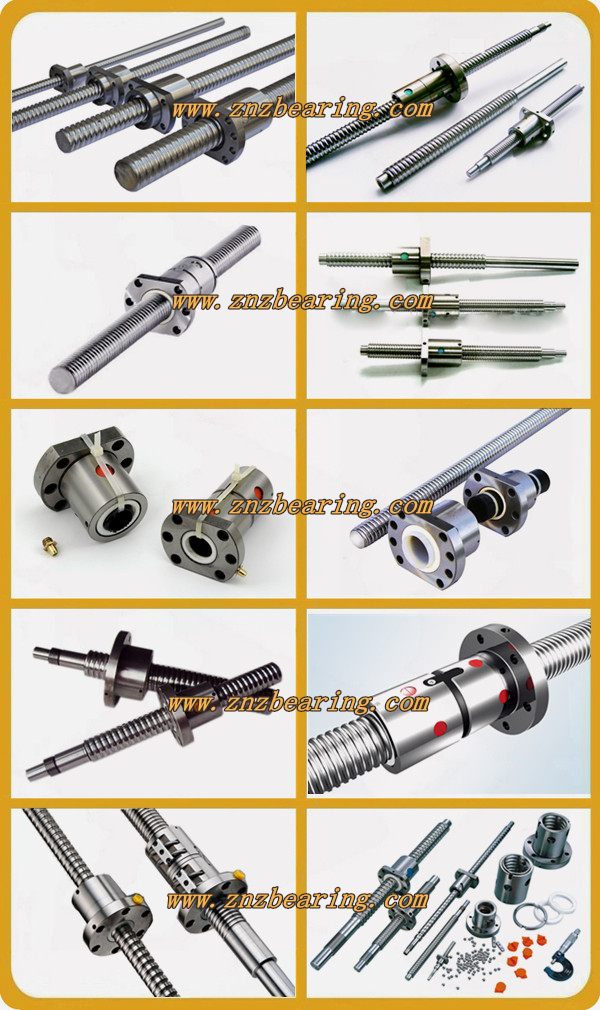

Ball Screws(Lead Screws)

ZNZ High Precison Rolled Ball Screw For CNC Machine

Ball Screw

ball screw nut, ball screw(ballscrew): we supply a full range of high performance, cost effective, precision for all application

ball screw nut, ball screw(ballscrew): we supply Ball Screws at a full range of high performance, cost effective, and precision for all applications. Ballscrews are critical components in machine tools and production machinery.


Ball Screw Features Include: Long operating life, High lead accuracy to C7 standards,

Fast delivery on many models.


specification list (SFI and DFI):
1204-3,1605-4,1610-3,2005-4,205T-4,2505-4,3205-4,3210-4,4005-4,4010-4,5010-4,6310-4,8010-4


specification list (SFU and DFU)
1204-3,1605-4,1610-3,2005-4,2505-4,2510-4,3205-4,3210-4,4005-4,4010-4,5010-4,6310-4,8010-4, 2505-5,2510-2.5,3205-5,3206-5,3208-5,3210-5,3220-2.5,4005-5,4010-5,4020-2.5,5010-5,5020-2.5,6310-5,6320-2.5,8010-5,8020-5,8020-7.5


specification list SFE
1616-3,1616-6,1632-3,1632-6,2020-3,2020-6,2040-3,2040-6,2525-3,2525-6,2550-3,2550-6,3232-3,3232-6,3264-3,3264-6,4040-3,4040-6,5050-3,5050-6



ZNZ High Precison Grinding Ball Screw



1. ZNZ brand ball screw, OEM ODM Service also welcomed
2. Rolled or grinding both have, Grade C3-C10.
3. Min diameter is 8mm, max diameter is 160mm. Max length is 12m
4. Competitve price with good qualtiy.
5. SGS, TUV, ISO/TS16949, ISO9001 qualified.

ZNZ is a leading manufacturer of ball screw in China and preferred supplier for the design, manufacture and repair of precision-ground ball screw assemblies, commercial grade ball screw assemblies, and specialty threading applications, either English or metric. We can custom design and manufacture ball screws to meet your specific needs according to your drawing or sample. Precision ground Ball Screw Assemblies are available for Metallurgy Industry, Iron & Steel Industry, Petroleum Industry, and Chemical Industry.
We also offer classes on corrosion prevention and other maintenance services for ball screws. Contact us to see
