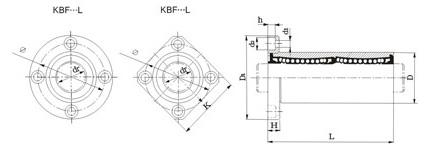

KBK-L,LMEK-L Long Square Flange Type Linear Bearing (Built-in Synthetics Resin Retainer)
Europe Series
Unit: (mm)
| MODEL NO. | NUMBER OF BALL ROWS | MAIN DIMENSIONS | SQUA-RENESS | ECCEN-TIRICITY(MAX.) | BASIC LOAD RATING | |||||||||||||
| INSCRIBED CIRCLE | OUTER DIAMETER | LENGTH | FLANGE | HOLE FOR ATTACHMENT | c(kgf) | Co(kgf) | ||||||||||||
| dr | TOLE-RANCE | D | TOLE-RANCE | L | TOLE-RANCE | D1 | K | H | Φ | d1 | d2 | h | ||||||
| KBK8L | 4 | 8 | +0.009 -0.001 | 16 | 0 -0.009 | 46 | 0 -0.30 | 32 | 25 | 5 | 24 | 3.5 | 6 | 3.1 | 0.015 | 0.015 | 43 | 82 |
| KBK10L | 4 | 10 | 19 | 0 -0.011 | 55 | 40 | 30 | 6 | 29 | 4.5 | 7.5 | 4.1 | 60 | 112 | ||||
| KBK12L | 4 | 12 | 22 | 61 | 42 | 32 | 6 | 32 | 4.5 | 7.5 | 4.1 | 83 | 160 | |||||
| KBK16L | 5 | 16 | +0.011 -0.001 | 26 | 68 | 46 | 35 | 6 | 36 | 4.5 | 7.5 | 4.1 | 94 | 182 | ||||
| KBK20L | 5 | 20 | 32 | 0 -0.013 | 80 | 54 | 42 | 8 | 43 | 5.5 | 9 | 5.1 | 0.017 | 0.017 | 140 | 280 | ||
| KBK25L | 6 | 25 | +0.013 -0.002 | 40 | 112 | 0 -0.40 | 62 | 50 | 8 | 51 | 5.5 | 9 | 5.1 | 160 | 320 | |||
| KBK30L | 6 | 30 | 47 | 123 | 76 | 60 | 10 | 62 | 6.6 | 11 | 6.1 | 225 | 560 | |||||
| KBK40L | 6 | 40 | +0.016 -0.004 | 62 | 0 -0.015 | 151 | 98 | 75 | 13 | 80 | 9 | 14 | 8.1 | 0.02 | 0.02 | 350 | 820 | |
| KBK50L | 6 | 50 | 75 | 192 | 112 | 88 | 13 | 94 | 9 | 14 | 8.1 | 620 | 1622 | |||||
| KBK60L | 6 | 60 | 90 | 0 -0.020 | 209 | 134 | 106 | 18 | 112 | 11 | 17.5 | 10.8 | 0.025 | 0.025 | 770 | 20 | ||
