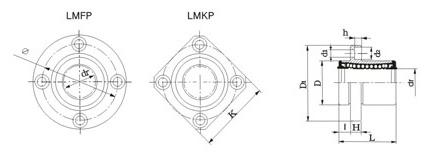

LMKP Pilot Pattern Square Flange Type Linear Bearing (Built-in Synthetics Resin Retainer)
Asia Series
Unit: (mm)
| MODEL NO. | NUMBER OF BALL ROWS | MAIN DIMENSIONS | SQUA-RENESS | ECCEN-TIRICITY(MAX.) | BASIC LOAD RATING | ||||||||||||||
| INSCRIBED CIRCLE | OUTER DIAMETER | LENGTH | I | FLANGE | HOLE FOR ATTACHMENT | c(kgf) | Co(kgf) | ||||||||||||
| dr | TOLE-RANCE | D | TOLE-RANCE | L | TOLE-RANCE | D1 | K | H | Φ | d1 | d2 | h | |||||||
| LMKP6 | 4 | 6 | -0 -0.009 | 12 | -0 -0.013 | 19 | ±0.30 | 5 | 28 | 22 | 5 | 20 | 3.5 | 6 | 3.1 | 0.012 | 0.012 | 21 | 27 |
| LMKP8 | 4 | 8 | 15 | 24 | 5 | 32 | 25 | 5 | 24 | 3.5 | 6 | 3.1 | 28 | 40 | |||||
| LMKP10 | 4 | 10 | 19 | -0 -0.016 | 29 | 6 | 40 | 30 | 6 | 29 | 4.5 | 7.5 | 4.1 | 38 | 56 | ||||
| LMKP12 | 4 | 12 | 21 | 30 | 0 -0.20 | 6 | 42 | 32 | 6 | 32 | 4.5 | 7.5 | 4.1 | 52 | 80 | ||||
| LMKP13 | 4 | 13 | 23 | 32 | 6 | 43 | 34 | 6 | 33 | 4.5 | 7.5 | 4.1 | 52 | 80 | |||||
| LMKP16 | 5 | 16 | 28 | 37 | 6 | 48 | 37 | 6 | 38 | 4.5 | 7.5 | 4.1 | 79 | 120 | |||||
| LMKP20 | 5 | 20 | -0 -0.010 | 32 | -0 -0.019 | 42 | 8 | 54 | 42 | 8 | 43 | 5.5 | 9 | 5.1 | 0.015 | 0.015 | 90 | 140 | |
| LMKP25 | 6 | 25 | 40 | 59 | 0 -0.30 | 8 | 62 | 50 | 8 | 51 | 5.5 | 9 | 5.1 | 100 | 160 | ||||
| LMKP30 | 6 | 30 | 45 | 64 | 10 | 74 | 58 | 10 | 60 | 6.6 | 11 | 6.1 | 160 | 280 | |||||
| LMKP35 | 6 | 35 | -0 -0.012 | 52 | -0 -0.022 | 70 | 10 | 82 | 64 | 10 | 67 | 6.6 | 11 | 6.1 | 0.020 | 0.020 | 170 | 320 | |
| LMKP40 | 6 | 40 | 60 | 80 | 13 | 96 | 75 | 13 | 78 | 9 | 14 | 8.1 | 220 | 410 | |||||
| LMKP50 | 6 | 50 | 80 | 100 | 13 | 116 | 92 | 13 | 98 | 9 | 14 | 8.1 | 390 | 810 | |||||
| LMKP60 | 6 | 60 | -0 | 90 | -0 | 110 | 18 | 134 | 106 | 18 | 112 | 11 | 17.5 | 10.8 | 0.025 | 0.025 | 480 | 1020 | |
