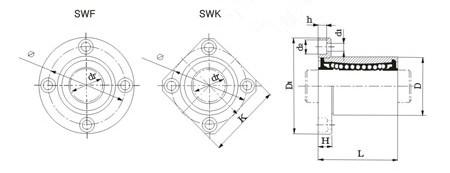

SWK,LMBK Square Flange Type Linear Bearing (Built-in Synthetics Resin Retainer)
Inch System Series
Unit: (inch)
| MODEL NO. | NO.OF BALL ROWS | MAIN DIMENSIONS | SQ. | EC. (MAX.) | BASIC LOAD RATING | |||||||||||||
| INSCRIBED CIRCLE | OUTER DIAMETER | LENGTH | FLANGE | HOLE FOR ATTACHMENT | c(kgf) | Co(kgf) | ||||||||||||
| dr | TOLE. | D | TOLE. | L | TOLE. | D1 | K | H | ф | d1 | d2 | h | ||||||
| SWK04 | 3 | 1/4˝ 6.35 | 0 -0.09 | 0.5˝ 12.7 | 0 -0.011 | 1.375˝ 34.925 | 0 -0.20 | 1.25˝ 31.75 | 1˝ 25.4 | 0.219˝ 5.556 | 0.875˝ 22.225 | 0.156˝ 3.969 | 0.25˝ 6.35 | 0.141˝ 3.572 | 0.012 | 0.012 | 21 | 27 |
| 0 -0.013 | ||||||||||||||||||
| SWK06 | 4 | 3/8˝ 9.525 | 0.625˝ 15.875 | 1.5938˝ 40.481 | 1.5˝ 38.1 | 1.25˝ 31.75 | 0.25˝ 6.35 | 1.062˝ 26.988 | 0.1875˝ 4.763 | 0.297˝ 7.541 | 0.172˝ 4.366 | 23 | 32 | |||||
| SWK08 | 4 | 1/2˝ 12.7 | 0.875˝ 22.225 | 2.375˝ 60.325 | 1.75˝ 44.45 | 1.375˝ 34.925 | 0.25˝ 6.35 | 1.312˝ 33.338 | 0.1875˝ 4.763 | 0.297˝ 7.541 | 0.172˝ 4.366 | 52 | 80 | |||||
| SWK10 | 4 | 5/8˝ 15.875 | 1.125˝ 28.575 | 2.8125˝ 71.438 | 2˝ 50.8 | 1.5˝ 38.1 | 0.25˝ 6.35 | 1.562˝ 39.688 | 0.1875˝ 4.763 | 0.297˝ 7.541 | 0.172˝ 4.366 | 79 | 120 | |||||
| SWK12 | 4 | 3/4˝ 19.05 | 0 -0.010 | 1.25˝ 31.75 | 0 -0.016 | 3.0937˝ 78.581 | 2.1875˝ 55.563 | 1.6875˝ 42.863 | 0.3125˝ 7.938 | 1.718˝ 43.66 | 0.2178˝ 5.556 | 0.344˝ 8.731 | 0.203˝ 5.159 | 0.015 | 0.015 | 88 | 140 | |
| SWK16 | 5 | 1˝ 25.4 | 1.5625˝ 39.688 | 4.283˝ 108.744 | 0 -0.30 | 2.5˝ 63.5 | 2˝ 50.8 | 0.3125˝ 7.938 | 2.031˝ 51.594 | 0.2187˝ 5.556 | 0.344˝ 8.731 | 0.203˝ 5.159 | 100 | 160 | ||||
| SWK20 | 5 | 1-1/4˝ 31.75 | 0 -0.012 | 2˝ 50.8 | 0 -0.019 | 5˝ 127 | 3.125˝ 79.375 | 2.5˝ 63.5 | 0.375˝ 9.525 | 2.5625˝ 65.088 | 0.2812˝ 7.144 | 0.406˝ 0.319 | 0.2656˝ 6.747 | 0.020 | 0.020 | 160 | 280 | |
| SWK24 | 6 | 1-1/2˝ 38.1 | 2.375˝ 60.325 | 5.6875˝ 144.463 | 3.75˝ 95.25 | 3˝ 76.2 | 0.5˝ 12.7 | 3.0625˝ 77.788 | 0.344˝ 8.731 | 0.5˝ 12.7 | 0.328˝ 8.334 | 222 | 410 | |||||
| SWK32 | 6 | 2˝ 50.8 | 3˝ 76.2 | 0 -0.022 | 7.75˝ 196.85 | 4.375˝ 111.125 | 3.5˝ 88.9 | 0.5˝ 12.7 | 3.6875˝ 93.662 | 0.344˝ 8.731 | 0.5˝ 12.7 | 0.328˝ 8.334 | 0.025 | 0.025 | 390 | 810 | ||
