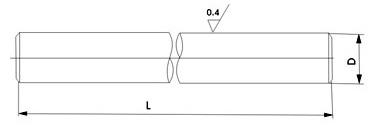

Sl Inch Size Linear Shaft

SI Inch Size Linear Shaft
Inch Series

Unit: (mm)

MODEL NO.	OUTER DIAMETER	DIAMETER TOLERANCE		DEPTH OF EFFECTIVE HARDENED LAYER	WEIGHT(kg/m)
MODEL NO.	OUTER DIAMETER	g6	h6	DEPTH OF EFFECTIVE HARDENED LAYER	WEIGHT(kg/m)
Si4	6.35	-0.004 -0.012	0 -0.008	>0.6	0.25
Si6	9.525	-0.005 -0.014	0 -0.009	>1.0	0.56
Si8	12.7	-0.006 -0.017	0 -0.011	>1.0	1.0
Si10	15.875	-0.006 -0.017	0 -0.011	>1.5	1.55
Si12	19.05	-0.007 -0.020	0 -0.013		2.24
Si16	25.4				4.0
Si20	31.75			>1.8	6.21
Si24	38.1	-0.009 -0.025	0 -0.016	>2.2	8.95
Si32	50.8	-0.009 -0.025	0 -0.016	>2.2	15.9
