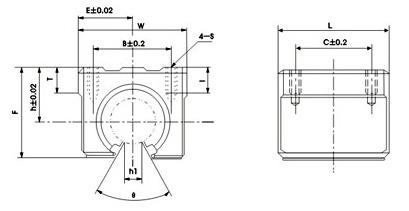

SBR, SME Series Case Unit (Open Type)
Asia Series
Unit: (mm)
| MODEL NO. | SHAFT DIAMETER | MAIN DIMENSIONS | MOUNTING DIMENSIONS | BASIC LOAD RATING | WEIGHT(kg) | |||||||||||
| B | C | S | l | c(kgf) | Co(kgf) | |||||||||||
| h | E | W | L | F | T | h1 | θ | |||||||||
| SBR10 | 10 | 15 | 18 | 36 | 32 | 24 | 7 | 6 | 80° | 25 | 20 | M5 | 10 | 38 | 56 | 0.065 |
| SBR12 | 12 | 17 | 20 | 40 | 39 | 27.6 | 8 | 8.5 | 80° | 28 | 26 | M5 | 10 | 42 | 61 | 0.100 |
| SBR13 | 13 | 17 | 20 | 40 | 39 | 27.6 | 8 | 8.5 | 80° | 28 | 26 | M5 | 10 | 52 | 80 | 0.100 |
| SBR16 | 16 | 20 | 22.5 | 45 | 45 | 33 | 9 | 10 | 80° | 32 | 30 | M5 | 12 | 59 | 91 | 0.150 |
| SBR20 | 20 | 23 | 24 | 48 | 50 | 39 | 11 | 10 | 60° | 35 | 35 | M6 | 12 | 88 | 140 | 0.200 |
| SBR25 | 25 | 27 | 30 | 60 | 65 | 47 | 14 | 11.5 | 50° | 40 | 40 | M6 | 12 | 100 | 160 | 0.45 |
| SBR30 | 30 | 33 | 35 | 70 | 70 | 56 | 15 | 14 | 50° | 50 | 50 | M8 | 18 | 160 | 280 | 0.63 |
| SBR35 | 35 | 37 | 40 | 80 | 80 | 63 | 18 | 16 | 50° | 55 | 55 | M8 | 18 | 170 | 320 | 0.92 |
| SBR40 | 40 | 42 | 45 | 90 | 90 | 72 | 20 | 19 | 50° | 65 | 65 | M10 | 20 | 220 | 410 | 1.33 |
| SBR50 | 50 | 53 | 60 | 120 | 110 | 92 | 25 | 23 | 50° | 94 | 80 | M10 | 20 | 390 | 810 | 3.00 |
