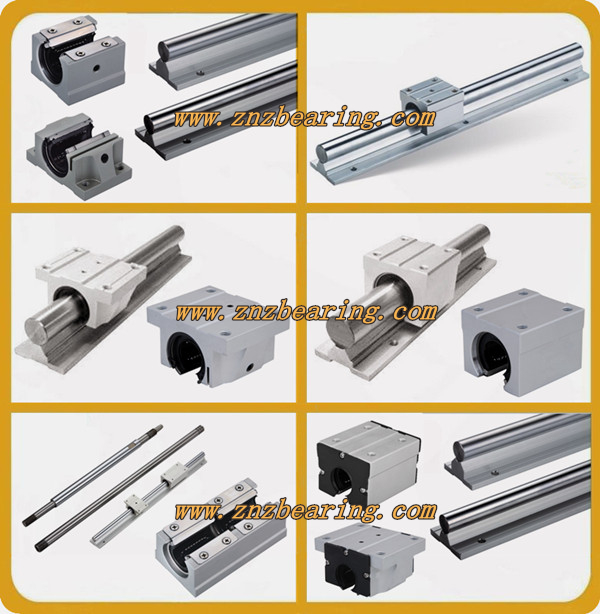

ZNZ SBR/TBR  ALUMINUM LINEAR RAIL

This is the sliding unit with the aluminium case, shafts and aluminium rail for preventing deflexion.

This is the complete sliding unit systems and can be clamped simply tightening by bolt with high accuracy.

Support Rail Unit provides maximum rigidity and stiffness to the shaft throughout the whole stroke, and ensure the performance of the unit.

We can provide the SBR/TBR Linear Rail Supports with diameter from 16 to 50,Max. length up to 6000mm

TBR...UU TBR...LUU series:
TBR16UU, TBR20UU, TBR25UU, TBR30UU TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU

SBR...UU SBR...LUU series:
SBR10UU, SBR13UU, SBR16UU, SBR20UU, SBR25UU, SBR30UU, SBR35UU, SBR35UU, SBR40UU, SBR50UU
