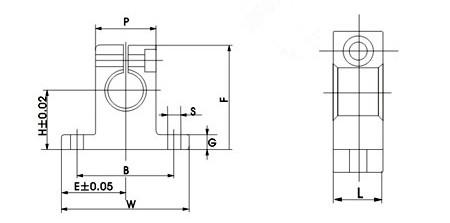

PA Stand-up Shfat Support
Unit: (mm)
| MODEL NO. | SHAFT DIAMETER | MAIN DIMENSIONS | WEIGHT(kg) | ||||||||
| h | E | W | L | F | G | P | B | S | |||
| PA12 | 12 | 20 | 21 | 42 | 12 | 35 | 5.5 | 20 | 32 | 4.3 | 0.021 |
| PA16 | 16 | 25 | 25 | 50 | 16 | 42 | 6.5 | 26 | 40 | 4.3 | 0.04 |
| PA20 | 20 | 30 | 30 | 60 | 20 | 50 | 8 | 32 | 45 | 4.3 | 0.075 |
| PA25 | 25 | 35 | 37 | 74 | 25 | 58 | 9 | 38 | 60 | 5.3 | 0.13 |
| PA30 | 30 | 40 | 42 | 84 | 28 | 68 | 10 | 45 | 68 | 6.4 | 0.195 |
