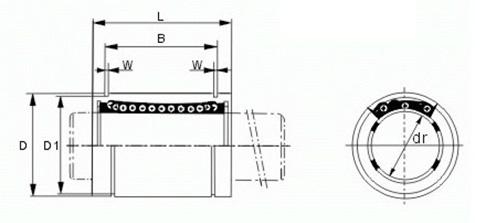

LM Linear Bearing (Built-in Synthetics Resin Retainer)
Asia Series
Unit: (mm)
MODEL NO. | NUMBER OF BALL | MAIN DIMENSIONS | ECCEN-TRICITY | BASIC LOAD RATING | ||||||||||
INSCRIBED CIRCLE | OUTER DIAMETER | LENGTH | OUT LOCKING GROOVE | W | C(kgf) | Co(kgf) | ||||||||
dr | TOLERANCE | D | TOLERANCE | L | TOLERANCE | B | TOLERANCE | D1 | ||||||
LM04UU | 4 | 4 | 0 -0.008 | 8 | 0 -0.009 | 12 | 0 -0.12 | 0.008 | 9 | 13 | ||||
LM05UU | 4 | 5 | 10 | 15 | 10.2 | 0 -0.20 | 9.6 | 1.1 | 17 | 21 | ||||
LM6UU | 4 | 6 | 0 -0.009 | 12 | 0 -0.011 | 17 | 0 -0.20 | 13.5 | 11.5 | 1.1 | 0.012 | 21 | 27 | |
LM8SUU | 4 | 8 | 15 | 19 | 11.5 | 14.3 | 1.1 | 18 | 23 | |||||
LM8UU | 4 | 8 | 15 | 24 | 17.5 | 14.3 | 1.1 | 27 | 41 | |||||
LM10UU | 4 | 10 | 19 | 0 -0.013 | 29 | 22 | 18 | 1.3 | 38 | 56 | ||||
LM12UU | 4 | 12 | 21 | 30 | 23 | 20 | 1.3 | 42 | 61 | |||||
LM13UU | 4 | 13 | 23 | 32 | 23 | 22 | 1.3 | 52 | 79 | |||||
LM16UU | 5 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 79 | 120 | |||||
LM20UU | 5 | 20 | 0 -0.010 | 32 | 0 -0.016 | 42 | 30.5 | 30.5 | 1.6 | 0.015 | 88 | 140 | ||
LM25UU | 6 | 25 | 40 | 59 | 0 -0.30 | 41 | 0 -0.30 | 38 | 1.85 | 100 | 160 | |||
LM30UU | 6 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 160 | 280 | |||||
LM35UU | 6 | 35 | 0 -0.012 | 52 | 0 -0.019 | 70 | 49.5 | 49 | 2.1 | 0.02 | 170 | 320 | ||
LM40UU | 6 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 220 | 410 | |||||
LM50UU | 6 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 390 | 810 | |||||
LM60UU | 6 | 60 | 0 -0.015 | 90 | 0 -0.022 | 110 | 85 | 86.5 | 3.15 | 0.025 | 480 | 1020 |
