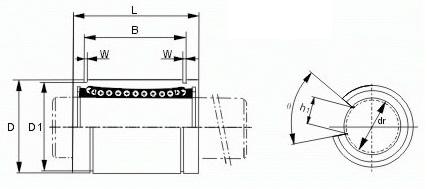

LM-OP Open Type Linear Bearing (Built-in Synthetics Resin Retainer)
Asia Series
Unit: (mm)
| MODEL NO. | NUMBER OF BALL | MAIN DIMENSIONS | ECCEN-TRICITY | BASIC LOAD RATING | ||||||||||||
| INSCRIBED CIRCLE | OUTER DIAMETER | LENGTH | OUT LOCKING GROOVE | W | hl | θ | c(kgf) | Co(kgf) | ||||||||
| dr | TOLE-RANCE | D | TOLE-RANCE | L | TOLE-RANCE | B | TOLE-RANCE | D1 | ||||||||
| LM10OP | 3 | 10 | 0 -0.009 | 19 | 0 -0.013 | 29 | 0 -0.20 | 22 | 0 -0.20 | 18 | 1.3 | 6.8 | 80° | 0.012 | 38 | 56 |
| LM12OP | 3 | 12 | 21 | 30 | 23 | a20 | 1.3 | 8 | 80° | 42 | 61 | |||||
| LM13OP | 3 | 13 | 23 | 32 | 23 | 22 | 1.3 | 9 | 80° | 52 | 79 | |||||
| LM16OP | 4 | 16 | 28 | 37 | 26.5 | 27 | 1.6 | 11 | 80° | 79 | 120 | |||||
| LM20OP | 4 | 20 | 0 -0.010 | 32 | 0 -0.016 | 42 | 30.5 | 30.5 | 1.6 | 11 | 60° | 0.015 | 88 | 140 | ||
| LM25OP | 5 | 25 | 40 | 59 | 0 -0.30 | 41 | 0 -0.30 | 38 | 1.85 | 12.5 | 60° | 100 | 160 | |||
| LM30OP | 5 | 30 | 45 | 64 | 44.5 | 43 | 1.85 | 15 | 60° | 160 | 280 | |||||
| LM35OP | 5 | 35 | 0 -0.012 | 52 | 0 -0.019 | 70 | 49.5 | 49 | 2.1 | 17.5 | 60° | 0.020 | 170 | 320 | ||
| LM40OP | 5 | 40 | 60 | 80 | 60.5 | 57 | 2.1 | 20 | 60° | 220 | 410 | |||||
| LM50OP | 5 | 50 | 80 | 100 | 74 | 76.5 | 2.6 | 25 | 60° | 390 | 810 | |||||
| LM60OP | 5 | 60 | 0 -0.015 | 90 | 0 -0.022 | 110 | 85 | 86.5 | 3.15 | 30 | 60° | 0.025 | 480 | 1020 | ||
