SW-L,LMB-L

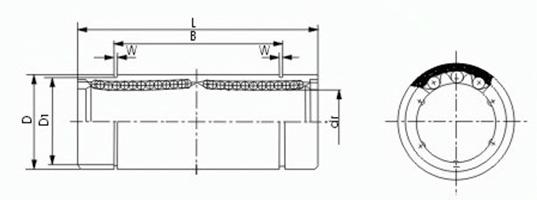

SW-L,LMB-L Long Type Linear Bearing (Built-in Synthetics Resin Retainer)

Inch System Series

Unit: (inch)

MODEL NO.NUMBER OF BALLMAIN DIMENSIONSECCEN-TRICITYBASIC LOAD RATING
INSCRIBED CIRCLEOUTER DIAMETERLENGTHOUT LOCKING GROOVE

W

c(kgf)Co(kgf)
dr

TOLE-RANCE

DTOLE-RANCELTOLE-RANCEBTOLE-RANCE

D1

SW04L4

1/4 ˝ 6.35

0

-0.010

0.5 ˝ 12.7

0

-0.013

1.375 ˝
34.925

0

-0.30

1.022 ˝ 25.959

0

-0.30

0.4687 ˝ 11.906

0.039 ˝
0.992

0.0153354

0

-0.016

SW06L4

3/8 ˝
9.525

0.625 ˝
15.875

1.5938 ˝ 40.481

1.2716˝
32.298

0.588 ˝
14.935

0.039 ˝
0.992

3664
SW08L4

1/2 ˝
12.7

0.875 ˝
22.225

2.375 ˝
60.325

1.925 ˝
48.895

0.8209 ˝ 20.853

0.0459 ˝
1.168

83160
SW10L4

5/8 ˝ 15.875

1.125 ˝
28.575

2.8125 ˝ 71.438

2.2079 ˝
56.08

1.0590 ˝ 26.899

0.0559 ˝
1.422

126240
SW12L5

3/4 ˝
19.05

0

-0.012

1.25 ˝
31.75

0

-0.019

3.0937 ˝ 78.581

2.3314 ˝
59.218

1.176 ˝
29.87

0.0559 ˝
1.422

0.020140280
SW16L5

1 ˝
25.4

1.5625 ˝ 39.688

4.283 ˝
108.744

0

-0.40

3.5094 ˝
89.139

0

-0.40

1.4687 ˝ 37.306

0.0679 ˝
1.727

160320
SW20L6

1-1/4 ˝ 31.75

0

-0.015

2 ˝ 50.8

0

-0.022

5 ˝
127

4.0094˝
101.839

1.8859 ˝ 47.904

0.0679 ˝
1.727

0.025255560
SW24L6

1-1/2 ˝
38.1

2.375 ˝
60.325

5.6875 ˝ 144.463

4.8236 ˝ 122.519

2.2389 ˝
56.87

0.0859 ˝
2.184

350820
SW32L6

2 ˝ 50.8

3 ˝ 76.2

0

-0.025

7.75 ˝
196.85

6.3834 ˝
162.138

2.8379 ˝ 72.085

0.1029 ˝
2.616

0.030620162
