ZNZ Linear Guide
Our linear guide (Linear guideway,linear rail) available in several sizes to accommodate loads of all types, from light to heavy, and offer suitable for use in numerous applications, such as machine design requiring incorporation of linear guide products into the machine structure.
We produce full range of linear guide designed to satisfy the most demanding requirements.

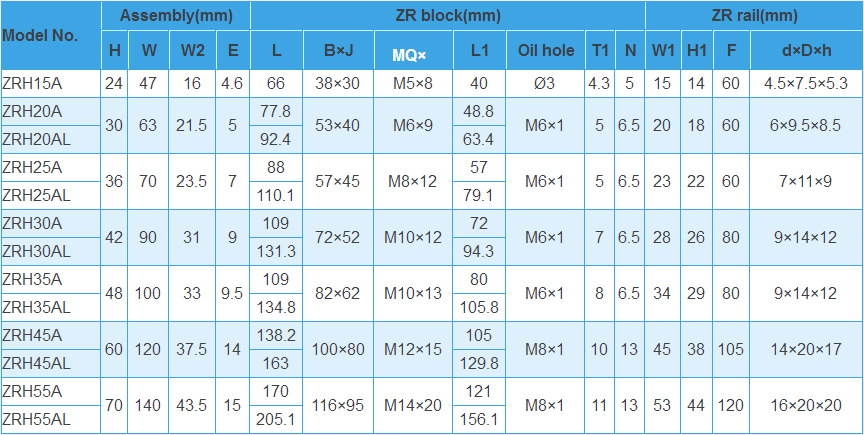

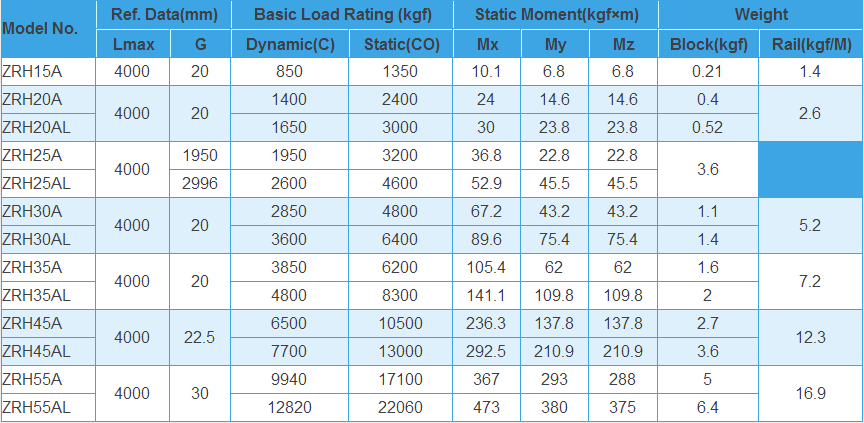

Specification list:
linear guide:ZR15/ZR20/ZR25/ZR30/ZR35/ZR45/BR55

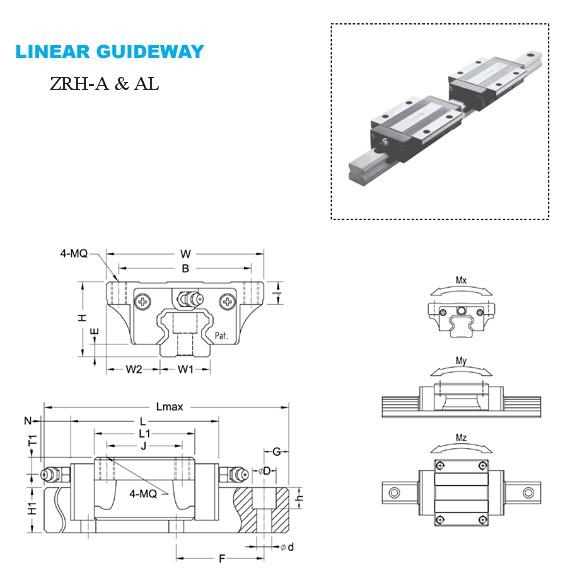

(Flange Type: ZRH-A):
ZRH15A,ZRH20A,ZRH25A,ZRH30A,ZRH35A,ZRH45A,ZRH55A
(Square Type:ZRH-B):
ZRH15B,ZRH20B,ZRH25B,ZRH30B,ZRH35B,ZRH45B,ZRH55B
TaiWan HIWIN Linear Guide and ABBA Linear guide Model Size:
ZNZ | ZR | ZRH-A | ZRH-AL | ZRH-B | ZRH-BL | ZRS-A | ZRS-BS | ZRS-B | ZRS-BL | ZRS-BS |
ABBA | BR | BRH-A | BRH-AL | BRH-B | BRH-BL | BRS-A | BRS-BS | BRS-B | BRS-BL | BRS-BS |
HIWIN | HGR | HGW-CA | HGW-HA | HGH-CA | HGH-HA | EGW-CA | EGW-SA | EGH-CA | EGH-SA |
