Location:Home > Products > Linear Ball Bearings > Standard Linear Bearing

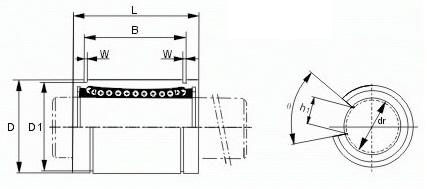

SW-OP,LMB-OP

Unit: (inch

MODEL NO.NUMBER OF BALLMAIN DIMENSIONSECCEN-TRICITYBASIC LOAD RATING
INSCRIBED CIRCLEOUTER DIAMETERLENGTHOUT LOCKING GROOVE

W

h1θc(kgf)Co(kgf)
dr

TOLE-RANCE

DTOLE-RANCELTOLE-RANCEBTOLE-RANCE

D1

SW08OP3

1/2 ˝
12.7

0

-0.009

0.875 ˝
22.225

0

-0.013

1.25 ˝
31.75

0

-0.20

0.9625˝
24.46

0

-0.20

0.8209 ˝ 20.853

0.0459 ˝
1.168

0.34˝
7.9375

80°
0.0125280
SW10OP3

5/8 ˝
15.875

1.125 ˝
28.575

1.5 ˝ 38.1

1.1039 ˝
28.04

1.059 ˝
26.899

0.0559 ˝
1.422

0.375˝
9.525

80°
79120
SW12OP4

3/4 ˝
19.05

0

-0.010

1.25 ˝ 31.75

0

-0.016

1.625 ˝ 41.275

1.1657 ˝
29.61

1.176 ˝
29.87

0.0559 ˝
1.422

0.4375˝
11.1125

60°
0.01588140
SW16OP4

1 ˝
25.4

1.5625 ˝
9.688

2.25 ˝
57.15

0

-0.30

1.7547 ˝
44.57

0

-0.30

1.4687 ˝
37.306

0.0679 ˝
1.727

0.5625˝
14.2875

50°100160
SW20OP5

1-1/4 ˝ 31.75

0

-0.012

2 ˝
50.8

0

-0.019

2.625 ˝ 66.675

2.0047 ˝
50.92

1.8859 ˝
47.904

0.0679 ˝
1.727

0.625 ˝

15.875

50°0.020160280
SW24OP5

1-1/2 ˝
38.1

2.375 ˝
60.325

3 ˝ 76.2

2.4118 ˝
61.26

2.2389 ˝
56.87

0.0859 ˝
2.184

0.75 ˝
19.05

50°220410
SW32OP5

2 ˝ 50.8

3 ˝ 76.2

0

-0.022

4 ˝ 101.6

3.1917 ˝
81.07

2.8379 ˝ 72.085

0.1029 ˝
2.616

1 ˝
25.4

50°0.025390810
